Boot Tow Bar Power Take-Off Loom for Land Rover Defender L663 - for NO Tow Bar

Boot Power Take-off Loom

for vehicles with NO tow bar fitted

for Land Rover Defender L663

This listing is for a power take-off loom for the boot (trunk) of the Land Rover Defender L663.

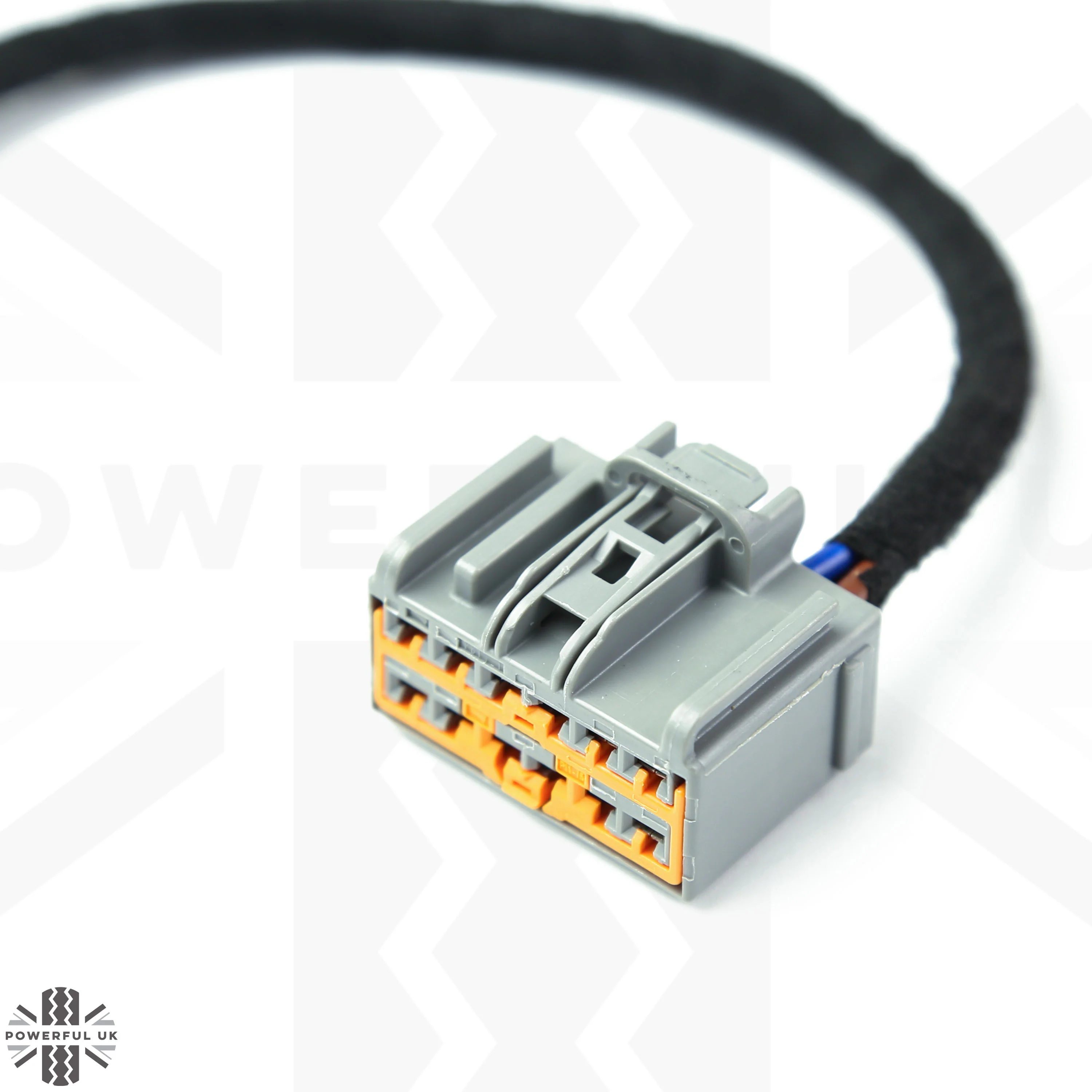

The loom plugs into the towbar power plug that all vehicles have located in the boot floor and will give you an ignition +ve / Battery +ve and Battery -ve.

This is only suitable if you DO NOT have a towbar fitted (if you have a towbar the plug you need will already be used for the towbar electrics).

**If you have a towbar and would like a power take-off like this, then let us know as we could look at making a tap-in interceptor loom.

We have used this loom to install a split charge/leisure battery setup in the boot.

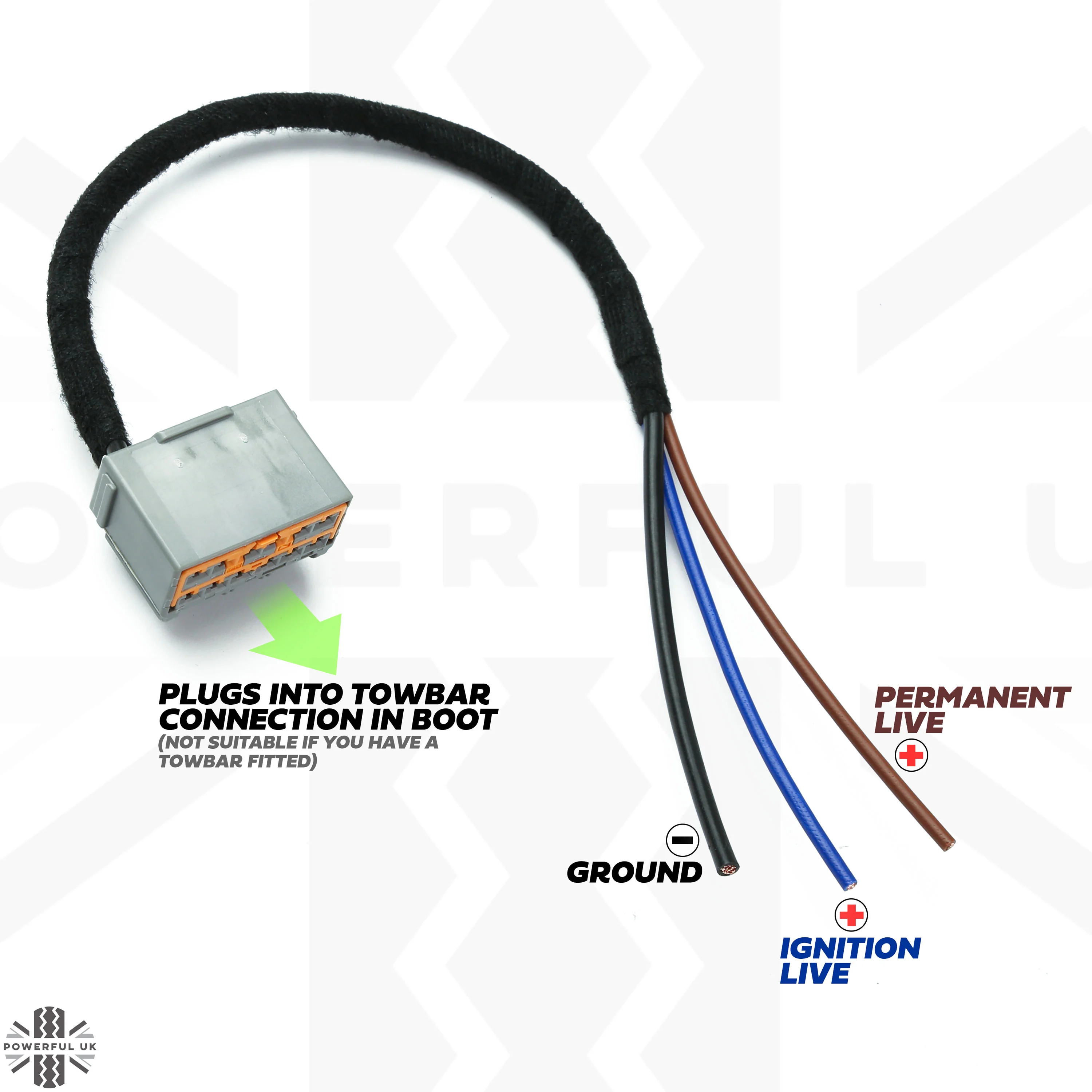

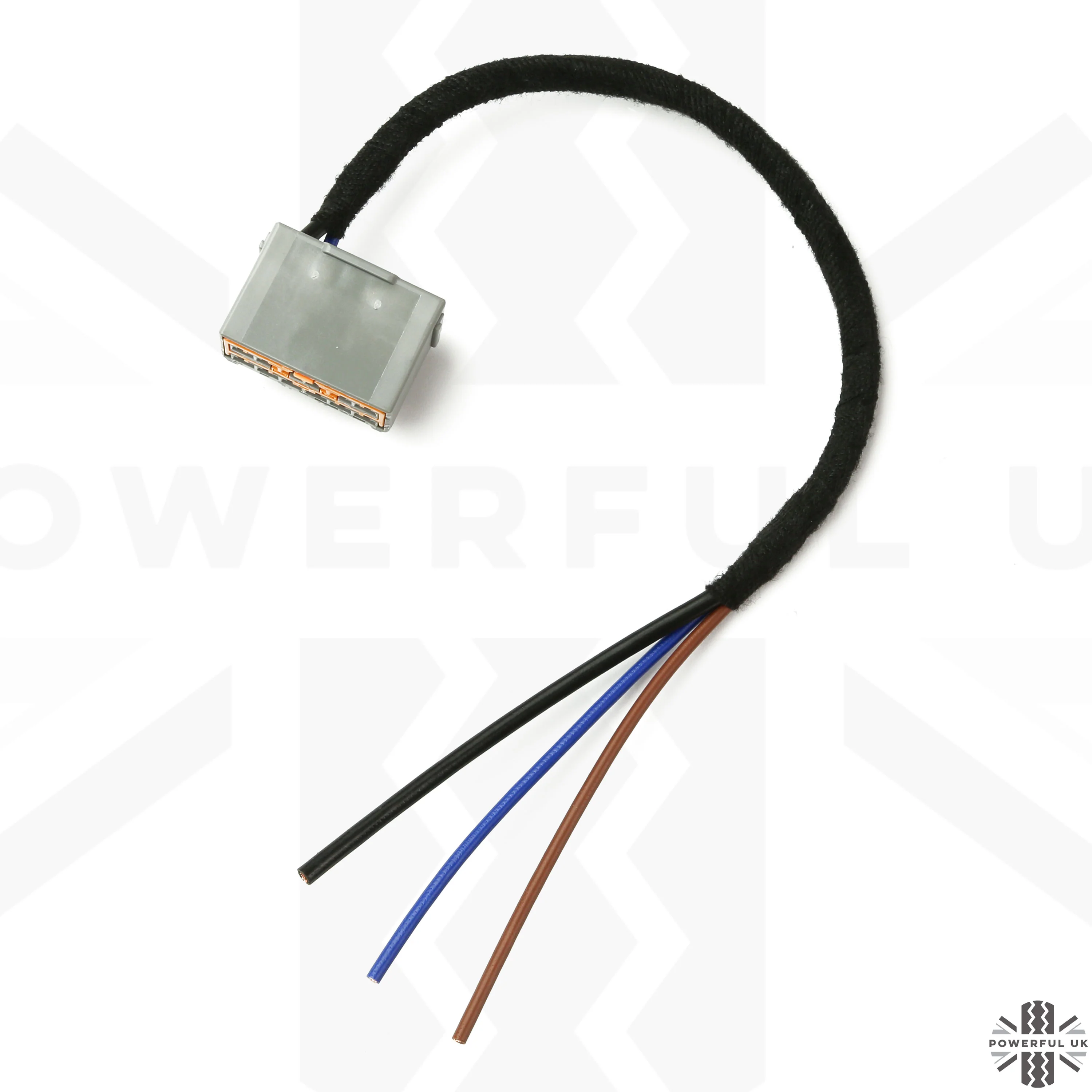

The loom has 3 colour coded output wires, with the following functions:

• Black = Earth
• Blue=Ignition Live
• Brown=Permanent Live

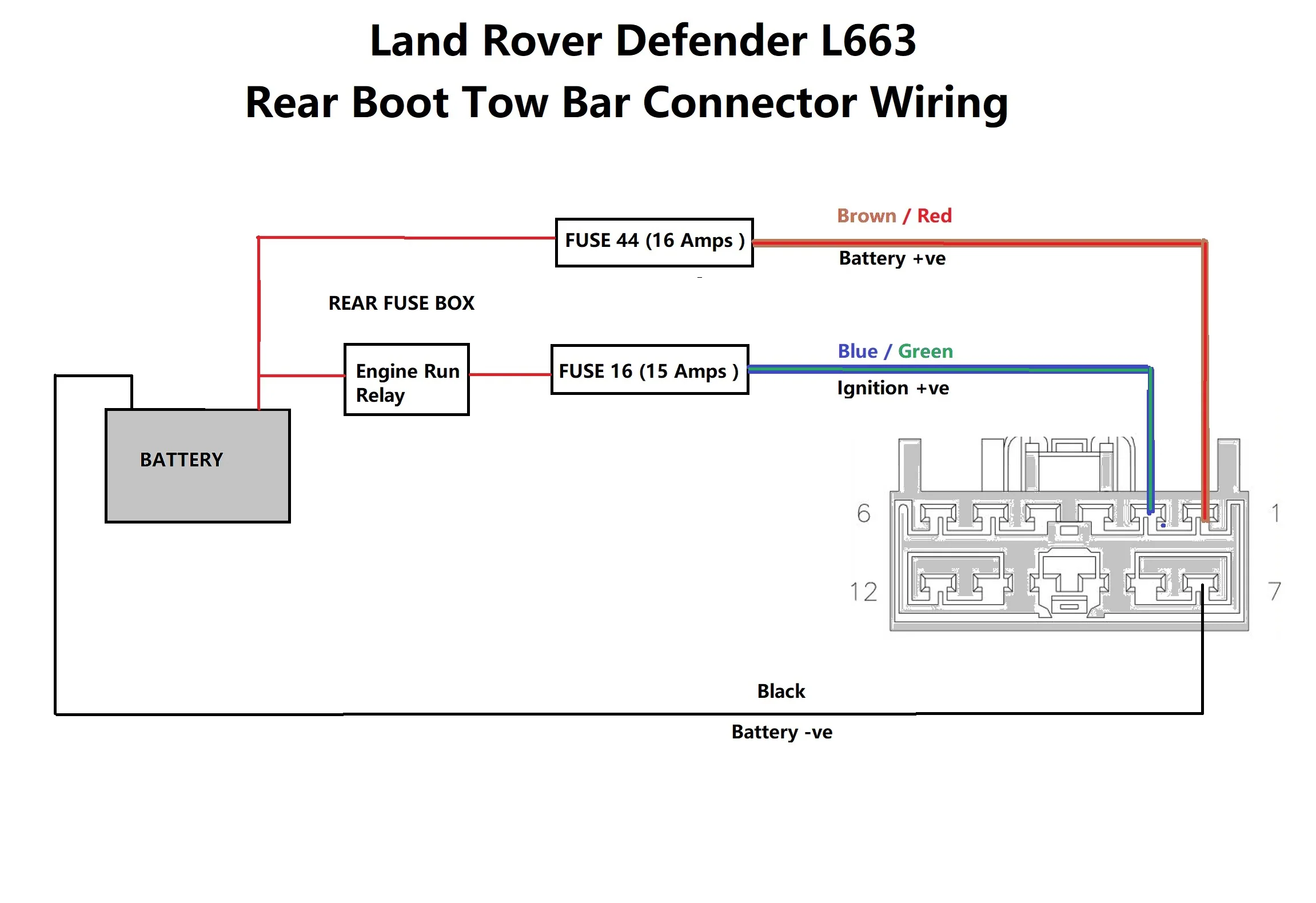

See attached wiring diagram showing the wiring on the car and fuses etc

This listing is for a single power take-off loom.

We have designed this loom and had it manufactured to our specification.

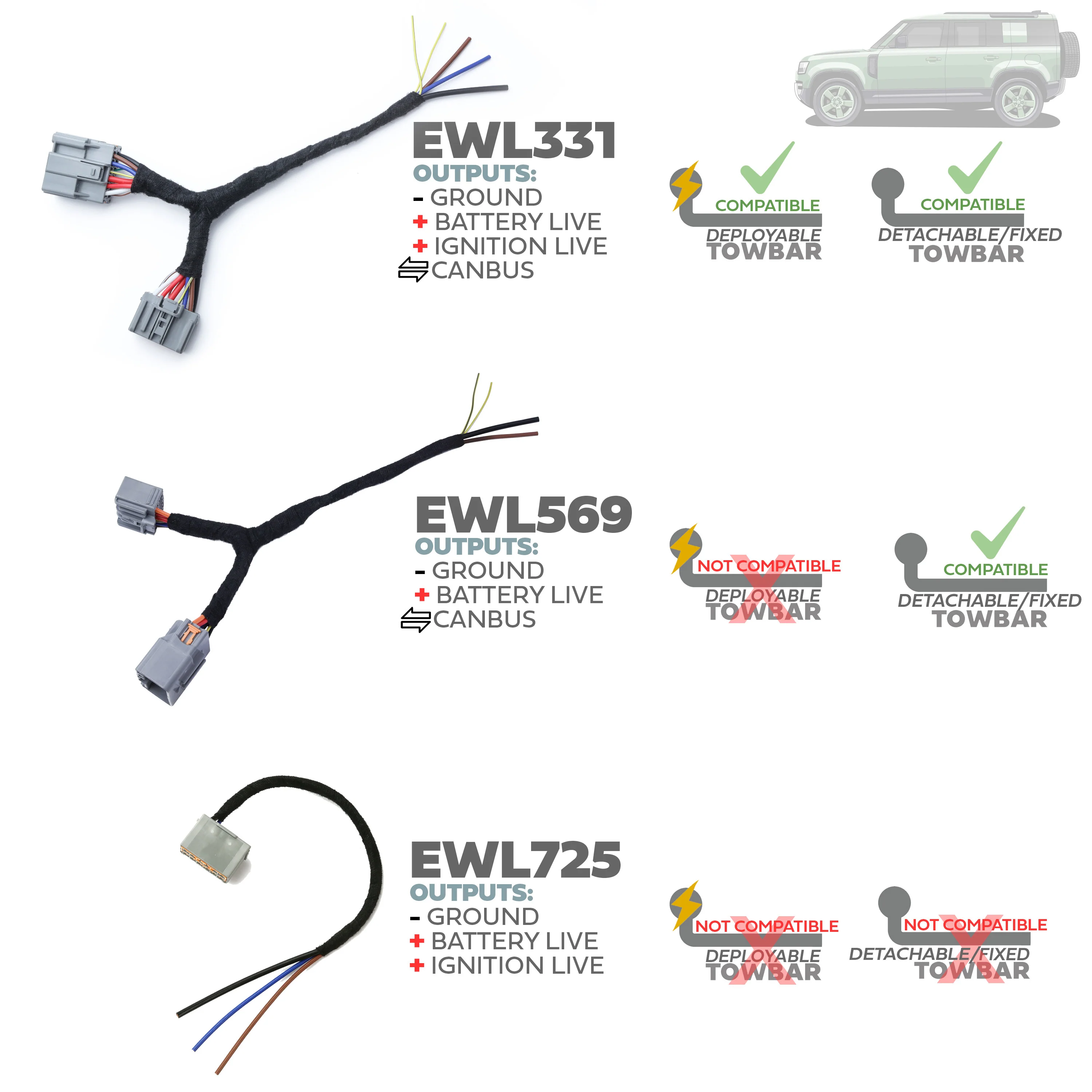

See our other listing to purchase a 'pass-through' loom with CANbus signal outputs.

This is NOT a genuine Land Rover item.

Fitting Details

Video coming soon.

Which Vehicles will this fit ?

This item WILL fit all Land Rover Defender L663 - all models that do not have a towbar fitted.

This item WILL NOT fit the Land Rover Defender L663 with a towbar fitted
